Modern organizations generate massive volumes of data across departments, platforms, and customer touchpoints. To turn that data into actionable insight, they need a reliable way to move and prepare it for analysis. The fabric data pipeline offers a flexible solution for collecting, transforming, and loading data from multiple sources into a unified environment.

This guide introduces the core concepts behind fabric data pipelines and explains how to use them effectively. Whether you're consolidating systems, building a reporting layer, or powering AI-driven tools, fabric data pipelines provide the foundation. Getting started takes only a few steps, and this guide will walk you through each one clearly.

What is a Fabric Data Pipeline?

A Fabric Data Pipeline is a cloud-based orchestration tool within Microsoft Fabric that helps you move, transform, and manage data across different systems. It lets you automate complex data workflows by organizing a series of activities such as copying data, running notebooks, or executing SQL scripts into a coordinated process. These pipelines support both batch and real-time operations, making them useful for a wide range of data engineering needs.

You can use a fabric data pipeline to build reliable and repeatable data workflows that connect various sources, apply necessary transformations, and deliver the final output without manual effort.

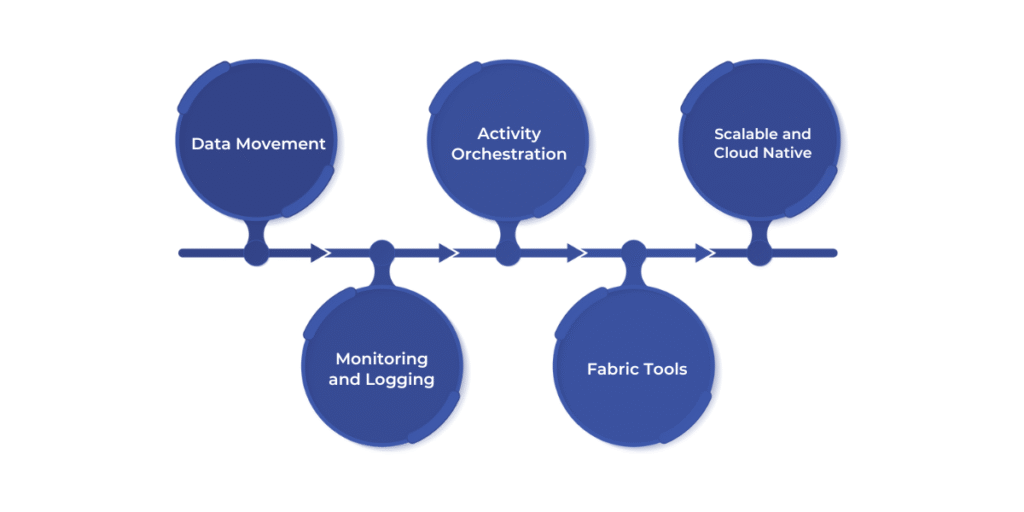

Key Capabilities of Fabric Data Pipeline

Fabric Data Pipelines offer a rich set of features that help you build, automate, and scale data workflows across your organization. These capabilities make it easier to handle diverse data tasks within a single, unified environment while maintaining control, flexibility, and visibility.

Below are the core capabilities that make Fabric Data Pipelines a powerful choice for modern data integration and orchestration:

• Multi-source Data Movement: Fabric pipelines support connections to a wide variety of data sources, including databases, cloud storage, and software-as-a-service platforms.

• Activity Orchestration: You can sequence multiple tasks such as data transfer, script execution, and notebook operations, and control their order and logic.

• Scalable and Cloud Native: Pipelines run using Microsoft Fabric's compute resources, with support for scaling and parallel execution of tasks.

• Monitoring and Logging: You get built-in tools to track execution, monitor progress, and troubleshoot failures with detailed logs and metrics.

• Integration with Fabric Tools: Pipelines connect easily with other Microsoft Fabric services like Lakehouses, Notebooks, Dataflows, and Power BI for end-to-end data solutions.

Before you build your first pipeline, it’s important to understand the components that drive its logic. In Fabric, that logic is handled through activities and workflows, which determine what happens and when.

How Fabric Pipelines Run: Activities and Workflows

Fabric pipelines work by combining specific tasks into a structured, logical flow. These tasks, called activities, are arranged in a workflow that defines how and when each activity runs. Together, they form the engine behind every automated data process in Fabric.

What Are Activities?

An activity is a single step in a pipeline that performs a defined task. Each one has a clear purpose, such as copying data from one location to another, executing a script, or triggering another process.

Here are some common examples:

• Copy activity transfers data between sources
• Notebook activity runs a Spark-based notebook for processing
• Script activity executes SQL code or custom logic
• Web activity sends HTTP requests to external systems
• Pipeline activity calls another pipeline to promote reusability

You can configure each activity with parameters, dependencies, and runtime settings. This makes it easy to tailor actions to your specific requirements.

What Is a Workflow?

A workflow defines how activities are organized and executed within the pipeline. It sets the structure for:

• The order of execution
• Whether tasks run one after the other or in parallel
• How the pipeline should respond to success, failure, or other conditions
• Looping or repeating logic where needed

Think of a workflow as the pipeline's logic layer. It decides what happens, when it happens, and under what conditions.

How Activities and Workflows Connect

Activities don't run in isolation; they work together within the workflow. You decide how they connect by defining dependencies and conditions. For example, one activity might run only after another completes successfully.

You can also branch the flow based on outcomes or loop through tasks based on input. This structure gives you full control over the pipeline’s behavior, making it possible to automate everything from a simple data copy to a complex transformation and reporting chain.

To begin working in Fabric, it's essential to confirm that the required tools and permissions are in place. Without the proper environment, even basic pipeline tasks can run into issues. Let’s walk through what you need before you open the Fabric Data Pipeline interface.

Suggested Read: Microsoft Fabric Features and Benefits Explained

Prerequisites for Fabric Data Pipeline

Creating your first pipeline in Microsoft Fabric is a straightforward process, but it does require some setup. Before opening the pipeline designer, make sure you meet the platform's basic requirements and understand what resources you’ll be connecting.

Here are the key prerequisites to ensure a smooth setup:

• You are licensed for Microsoft Fabric and have workspace access
• Your workspace is connected to a Lakehouse, Warehouse, or other supported Fabric item
• You have permission to use Data Factory (Pipelines) within your workspace
• You are assigned the necessary roles (typically Fabric Admin, Contributor, or Member)

Now that the necessary prerequisites are in place, you can begin building your Fabric data pipeline in a structured and efficient way. This next section walks through the complete setup process, guiding you step by step from creation to execution, so your pipeline is ready for reliable data flow.

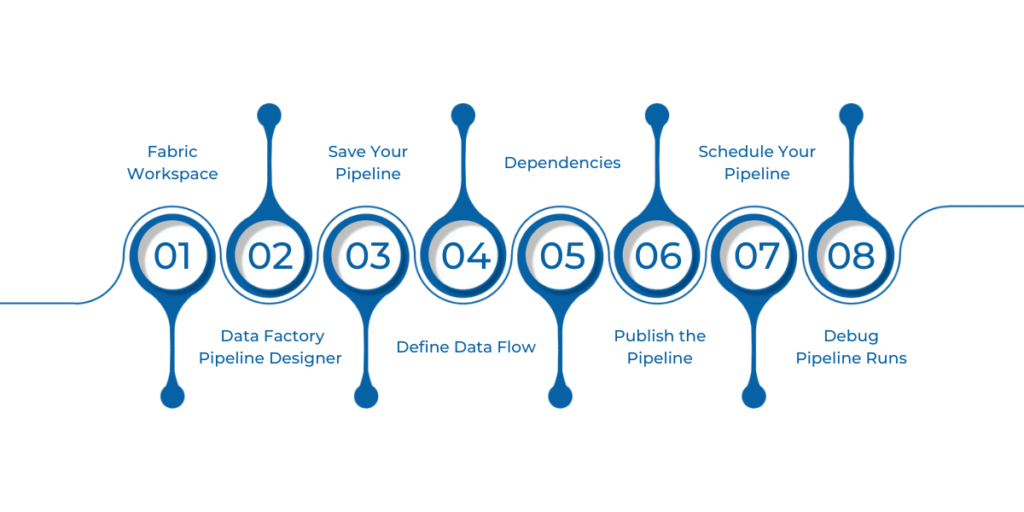

Step-by-Step Process for Setting Up a Fabric Data Pipeline

Microsoft Fabric offers a user-friendly, no-code/low-code interface to create a pipeline with a Data Factory experience. This tool allows users to create, configure, and manage pipelines directly within a Fabric workspace. Whether you're moving data between services or triggering scripts, the visual editor makes it easy to construct complex workflows.

To begin building your first pipeline, follow these steps:

Step 1: Open Your Fabric Workspace

Start by launching the Microsoft Fabric experience:

• On the Microsoft 365 homepage, find the workspace where you plan to build your pipeline.
• Ensure that the workspace contains at least one storage destination (e.g., a Lakehouse, Warehouse, or KQL Database). These are essential for storing or transforming data within your pipeline.

Step 2: Launch the Data Factory Pipeline Designer

With your workspace ready:

• In the left-side menu, click Create.
• From the list of available items, select Data pipeline.
• This action will open the Data Factory visual editor, your primary canvas for designing and managing pipelines.

Step 3: Name and Save Your Pipeline

Once the editor opens:

• Click on the default name at the top ("Untitled Pipeline") and rename it to something descriptive like CustomerData_Load or Sales_ETL_Pipeline.
• Click the Save icon in the top toolbar, or go to File > Save.

Step 4: Add Activities to Define Data Flow

With your pipeline structure ready, it's time to define the actual tasks it will perform:

• In the Activities pane (left side), select the activity you want to use and drag it to the main canvas.

  • Copy Data: To move data from one source to another (e.g., Azure SQL to Lakehouse).

  • Notebook: To run transformation scripts using Spark (ideal for more complex logic).

  • SQL Script: To perform operations like MERGE, UPDATE, or create views in your data storage.



• Click on the activity to configure its settings:

  • In Source, create or select a linked service (data connection).

  • In Sink, define the destination dataset and write behavior (e.g., overwrite or append).

Step 5: Control Execution with Dependencies

Pipelines often involve multiple steps in a specific order. To set this up:

• Click and drag the arrow handles between activities to establish flow.

• Choose the type of dependency:

  • On Success – move to the next activity only if the previous one succeeds.
  • On Failure – trigger a notification or alternate step if something goes wrong.
  • On Completion – continue regardless of the outcome.

Step 6: Validate and Publish the Pipeline

Before running anything:

• Click the Validate button (top toolbar) to check for configuration errors.
• If validation passes, click Publish All to apply your changes and activate the pipeline.

Step 7: Run or Schedule Your Pipeline

With a valid and published pipeline, you’re ready to run it:

• To run manually: Click Run on the toolbar. Monitor real-time execution from the monitor tab.
• To run on a schedule:
  • Click Add Trigger > New/Edit.
  • Set the frequency (e.g., daily, weekly) and configure the time.
  • Attach the trigger to your pipeline and save.

Step 8: Monitor and Debug Pipeline Runs

After running your pipeline:

• Go to the Monitor tab from the left menu or the pipeline canvas.

• Review:

  • Run History: Shows each execution’s status, duration, and outcome.
  • Logs: Provides detailed error messages and success confirmations.
  • Performance: Identify slow-running steps or bottlenecks.

Once your initial fabric data pipeline is up and running, it’s important to think beyond just functionality. As your data operations grow, so does the need for consistency, clarity, and long-term reliability. Applying a few trusted practices early on can help you avoid rework and build pipelines that scale with confidence.

Suggested Read: Power BI Premium to Microsoft Fabric Transition Guide

Best Practices for Building Your First Fabric Data Pipeline

This section highlights five practical best practices tailored for beginners. From naming conventions to monitoring strategies, these tips are designed to make your first fabric data pipeline easier to maintain, troubleshoot, and enhance over time.

• Start with a simple pipeline: Begin with a basic task like copying data between two sources. This helps you learn the interface and reduce complexity early on.

• Document as you build: Add descriptions to your pipeline and each activity to explain its purpose. This improves clarity for you and your team later on.

• Group related tasks logically: Organize activities by function or phase within your pipeline (e.g., extraction, transformation, loading). Logical grouping improves clarity and makes debugging easier.

• Monitor pipeline runs regularly: Use Fabric’s monitoring tools to check success/failure status and execution time. Early monitoring helps catch misconfigurations or slow runs.

• Validate before publishing: Run the built-in validation tool before deploying changes. It helps catch missing parameters or mislinked datasets early.

Conclusion

Getting started with fabric data pipelines is a key first step toward unlocking reliable and scalable data workflows in Microsoft Fabric. By focusing on the essentials, such as activities, workflows, and smart design, you build pipelines that not only run effectively but deliver long-term value.

At WaferWire, we help you move from idea to implementation quickly and confidently. Our team specializes in Microsoft Fabric’s Data Factory, and we guide you through connecting data sources, structuring your activity flows, and setting up reusable parameters that keep your pipelines easy to manage.

Our support goes beyond setup. We help you configure scheduling and monitoring so your pipelines run smoothly and give you control from day one. Whether you are launching your very first pipeline or laying the foundation for a larger data strategy, we ensure your solution is built right and built to grow.

Schedule a consultation today and let us help you build your first Fabric data pipeline with clarity and confidence.

FAQs

Q. How can I test and monitor the execution of my Fabric data pipeline?
A. You can test and monitor your pipeline using the Monitor tab in the Data Factory interface. It provides real-time insights, including run history, logs, and performance metrics, helping you track the pipeline's execution status and troubleshoot any errors.

Q. Can I schedule a Fabric data pipeline to run automatically?
Yes, Fabric data pipelines can be scheduled to run automatically by using triggers. You can set the frequency (e.g., daily or weekly) and time for the pipeline to run, ensuring it executes without manual intervention.

Q. What types of data sources can I connect to in a Fabric data pipeline?
A. Fabric data pipelines support a wide range of data sources, including databases, cloud storage, and software-as-a-service platforms. You can connect to Azure SQL, Lakehouse, KQL databases, and more to move and transform your data.

Q. What happens if I encounter an error while building or running a pipeline?
A. If you encounter an error, you can use the built-in validation tool to check for configuration issues before publishing. Additionally, the monitoring tools provide detailed logs and error messages to help identify and resolve the problem quickly.
